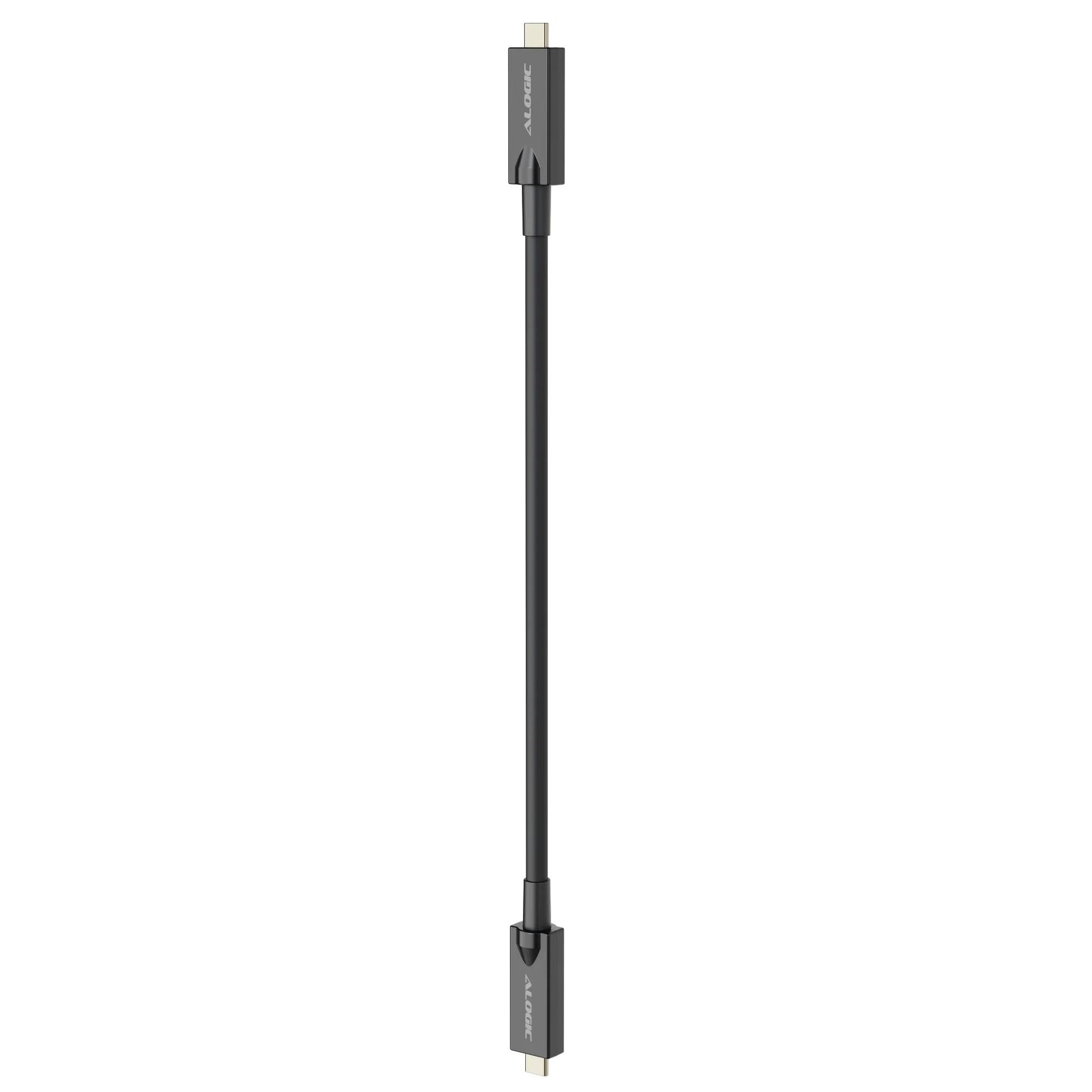

• Part No.: U3-TCC05-MM-H | U3-TCC10-MM-H | U3-TCC15-MM-H
• Input: 1 x USB Type C Male Connector
• Output: 1 x USB Type C Male Connector

Signals Supported

• Data: USB 3.2 Gen 2x1, 10Gbps + USB 2.0
• Video: DisplayPort 1.4 (2 Lane)
• Power: USB Power Delivery (PD) up to 20V 3A / 60W max
• Power Supply: Cable power supplied by host V­conn, 1100mW typical power consumption
• Video Resolution: Supports resolution and refresh rate combinations supported by DisplayPort 1.4 2 lane connections up to 4K (3840x2160) at 60Hz

Physical Characteristics

• Cable Length: U3-TCC05-MM-H - 5m
  U3-TCC10-MM-H - 10m
  U3-TCC15-MM-H - 15m
• Colour: Space Grey and Black
• Weight (product): 430/720/1260g approx. (5/10/15m)

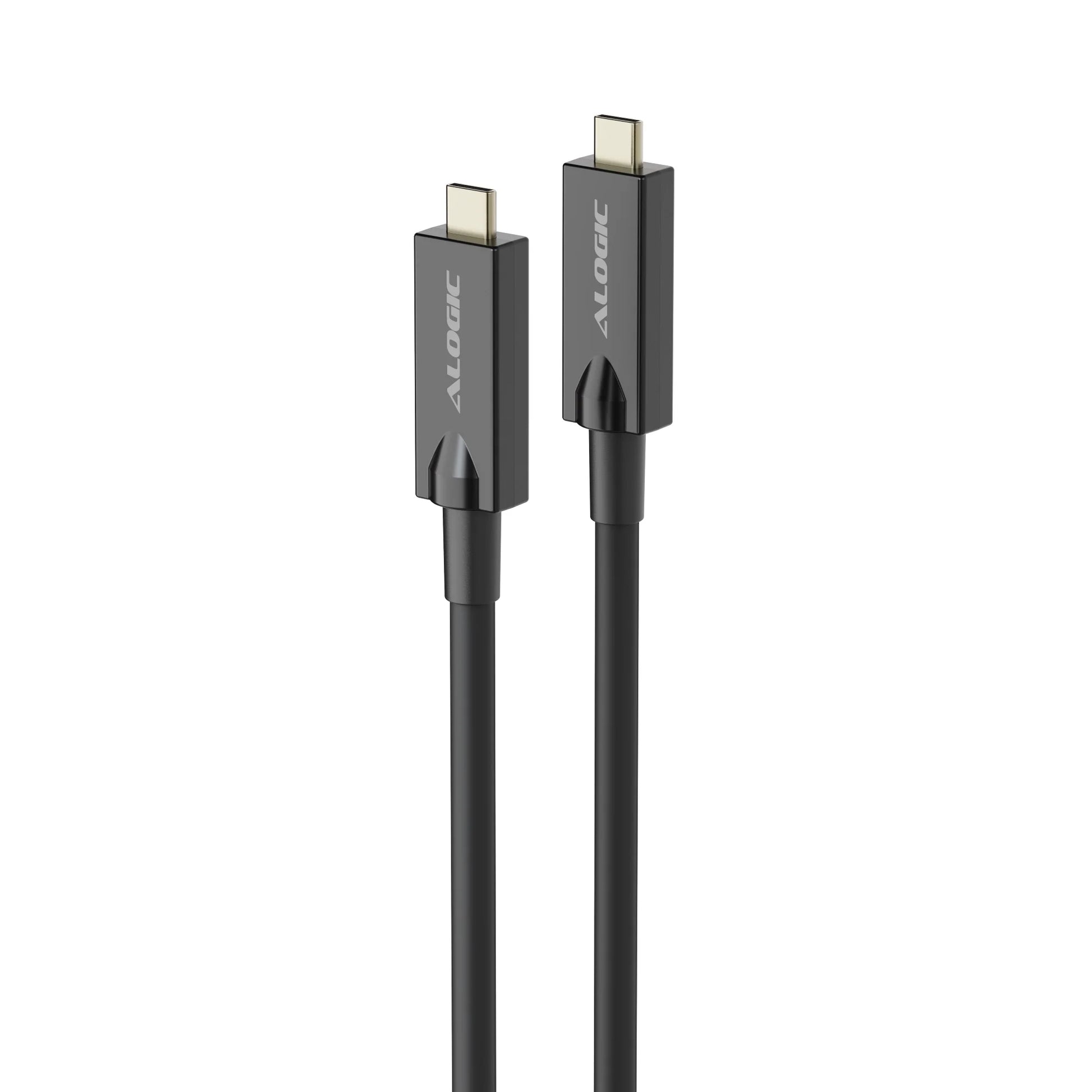

• Connector Material: Zinc alloy housings
• Cable Construction: Copper + multimode optical fibre hybrid construction
• Cable Shielding: PE + Kevlar/Cotton + Aluminium Mylar triple shielding
• Cable Sheathe: TPE

Installation Characteristics

• Connector Dimensions: 39x15mm
• Cable Outer Diameter: 6.5+/- 0.3mm
• Minimum Bend Radius: 60mm
• Cable Pulling/Tensile Strength: 15kg (150N absolute maximum rating)

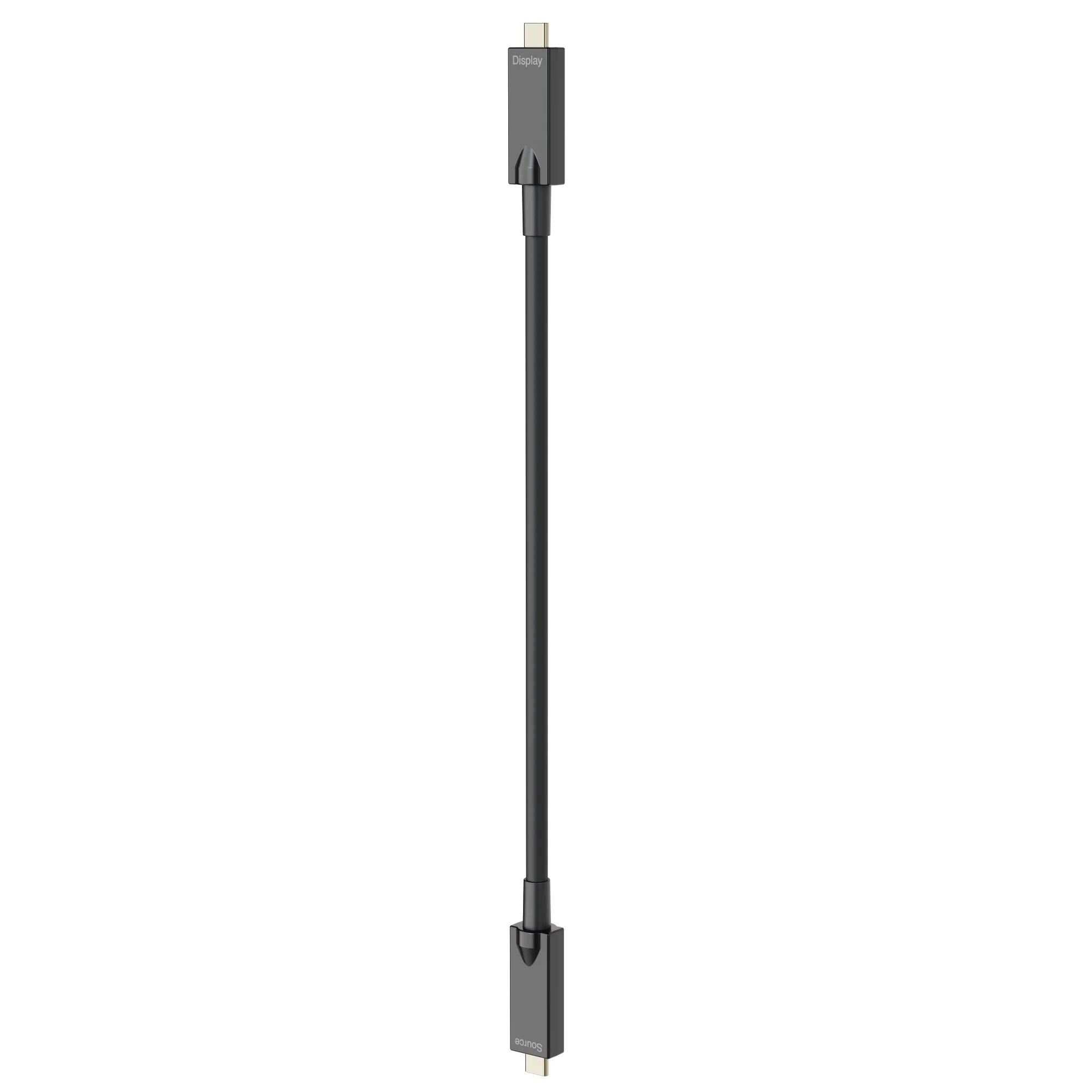

• Directional Installation: This cable can be used for data and power transfer in both directions. The cable is designed to pass video signals in a single direction; care should be taken to install the cable in the correct orientation in applications where video transfer is required.
• Environmental Characteristics: Operating and Storage Temperature: -10°C to +50°C | Operating and Storage Humidity10% to 85% RH (no condensation)
• Package Includes: 1 x USB-C Hybrid Optical Cable, Male to Male
  1 x User Manual
• Device Compatibility: USB-C port on the computer that the device is connected to must support USB Power Delivery charging up to 60W maximum for charging to work.
• Compliance: FCC, CE, UKCA, RoHS
• Warranty: 2 Year warranty for electrical failure.
• Barcode(EAN): U3-TCC05-MM-H | 9350784100320
  U3-TCC10-MM-H | 9350784100344
  U3-TCC15-MM-H | 9350784100351
