Specifications

Part No.: FUPHDVG1

Physical Characteristics:

Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
Cable Length: 230mm
Colour: Space Grey and Black
Weight (product): 133g approx
Materials: Aluminium and ABS
Input: 1 x Integrated USB-C cable for connection to computer
1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
Output: 1 x HDMI 2.01 x VGA2 x USB-A 3.2 Gen 1 5Gbps
1 x USB-C 3.2 Gen 1 5Gbps
1 x USB-C 2.0 480Mbps with PD power passthrough
1 x SD Card Reader
1 x Micro SD/TF Card Reader
1 x RJ45 Ethernet 1Gbps
Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
Video Resolution: HDMI - Up to 4K UHD at 60Hz
VGA - Up to 1920x1200 WUXGA Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
If displays are connected to HDMI and VGA outputs simultaneously, resolution will be limited to 1920x1200 and the same image will be shown on both displays.
Audio Support: Supports HDMI audio output
Environmental Characteristics: Operating Temperature - 0°C to +35°C
Operating Humidity - 10% to 85% RH (no condensation)
Package Includes: 1 x FUPHDVG1 USB-C TOUR Dock
1 x User Manual
Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
Compliance: FCC, CE, UKCA, RoHS
Barcode (EAN): 9350784027320

Downloads

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 20%

Fusion Pro TOUR USB-C Travel Dock

Name: Fusion Pro TOUR USB-C Travel Dock
Brand: ALOGIC AUS
SKU: FUPHDVG1
Price: 111.96 AUD
Availability: InStock

SKU: FUPHDVG1

$111.96

$111.96 ~~$139.95~~

🖥️ Tech Essential Sale | Discount Auto-Applied in CheckOut

FREE SHIPPING
Express Shipping & Free Returns
14 Days Money Back Guarantee

24/7 Customer Support
100% Secure Online Shopping

Specifications

Part No.: FUPHDVG1

Physical Characteristics:

Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
Cable Length: 230mm
Colour: Space Grey and Black
Weight (product): 133g approx
Materials: Aluminium and ABS
Input: 1 x Integrated USB-C cable for connection to computer
1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
Output: 1 x HDMI 2.01 x VGA2 x USB-A 3.2 Gen 1 5Gbps
1 x USB-C 3.2 Gen 1 5Gbps
1 x USB-C 2.0 480Mbps with PD power passthrough
1 x SD Card Reader
1 x Micro SD/TF Card Reader
1 x RJ45 Ethernet 1Gbps
Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
Video Resolution: HDMI - Up to 4K UHD at 60Hz
VGA - Up to 1920x1200 WUXGA Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
If displays are connected to HDMI and VGA outputs simultaneously, resolution will be limited to 1920x1200 and the same image will be shown on both displays.
Audio Support: Supports HDMI audio output
Environmental Characteristics: Operating Temperature - 0°C to +35°C
Operating Humidity - 10% to 85% RH (no condensation)
Package Includes: 1 x FUPHDVG1 USB-C TOUR Dock
1 x User Manual
Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
Compliance: FCC, CE, UKCA, RoHS
Barcode (EAN): 9350784027320

Downloads

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Fusion Pro TOUR USB-C Travel Dock

$111.96

$111.96 ~~$139.95~~

Fusion Pro TOUR

USB-C Travel Dock

All of the features needed for serious work on the go.

Up to 4K Video

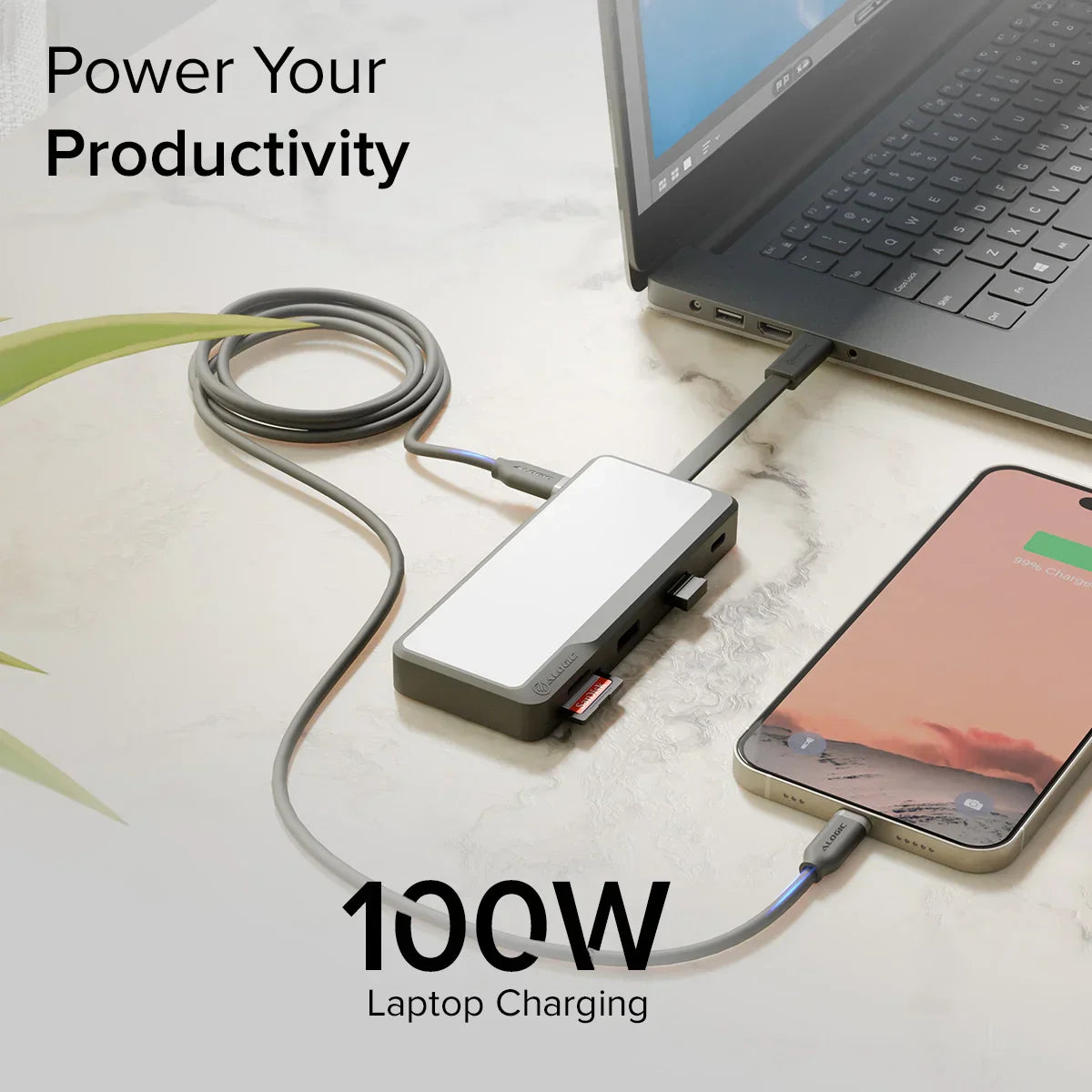

Pass-through Charging

Built-in USB-C Cable

Shielded Construction

Compact & Portable

Convenient Travel Partner

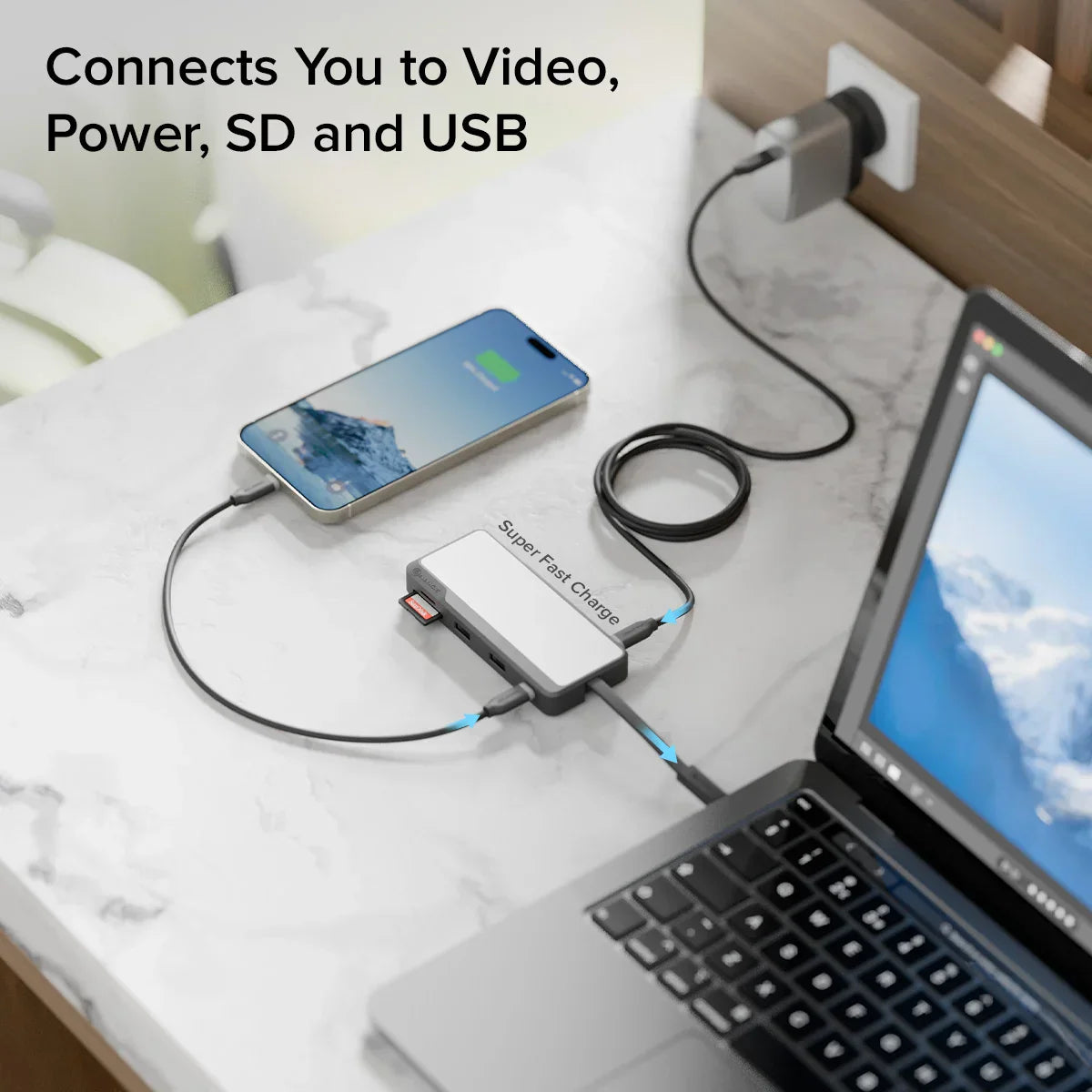

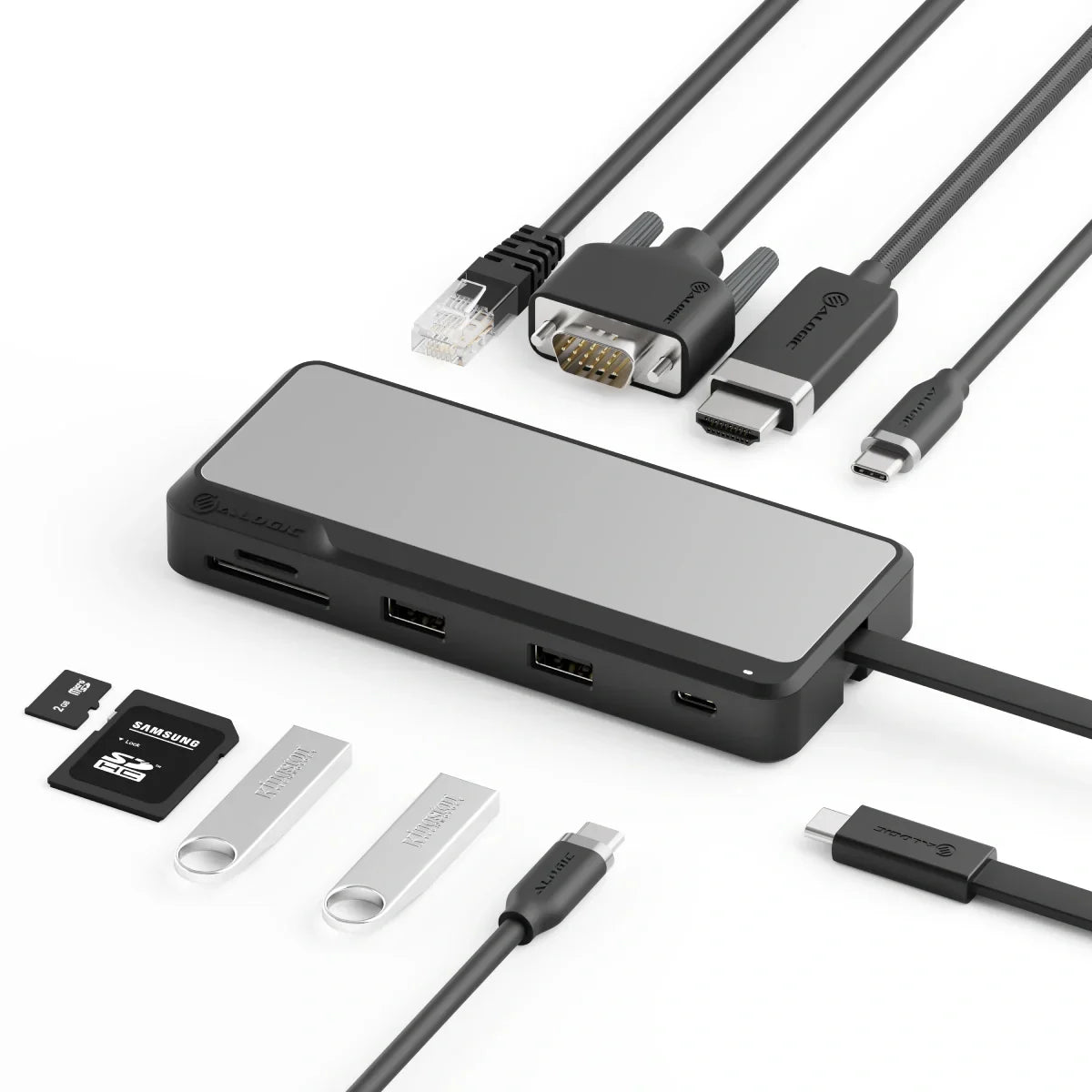

TOUR combines all the features you love from desktop docks into a travel-friendly form factor, including a 4K HDMI port (with VGA for backup), four USB connections, SD and microSD card readers and secure Gigabit Ethernet for wired network connectivity.

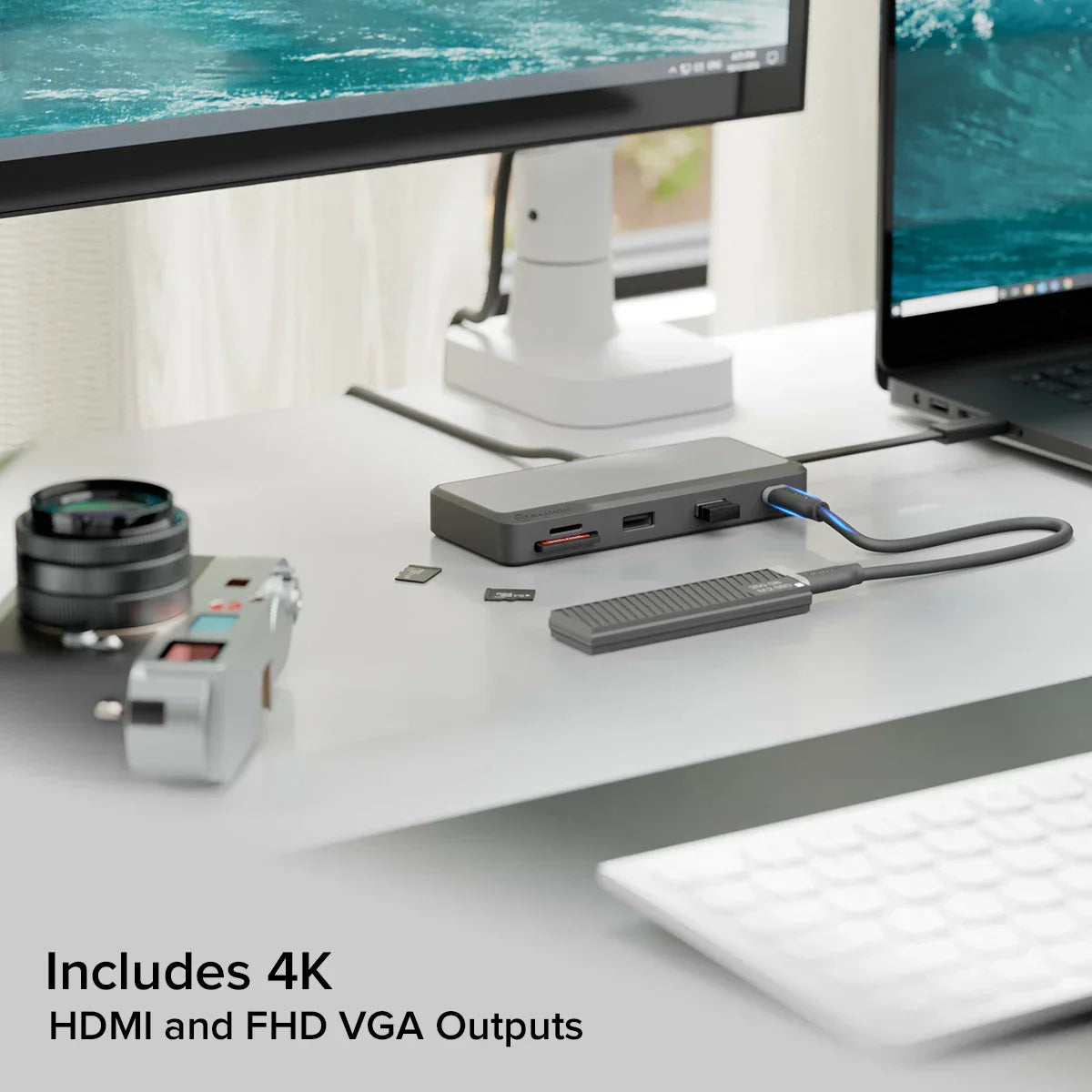

Stunning 4K Video

Small but powerful, the TOUR Dock can extend a laptop's display to any external monitor with a digital HDMI or analogue VGA input.

Supporting resolutions up to 4K over HDMI*, this dock can provide vivid high resolution visualization for increased visual fidelity.

SUPPORTS

SINGLE DISPLAY

Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ's below for guidance in the resolutions you can expect to achieve with your equipment._

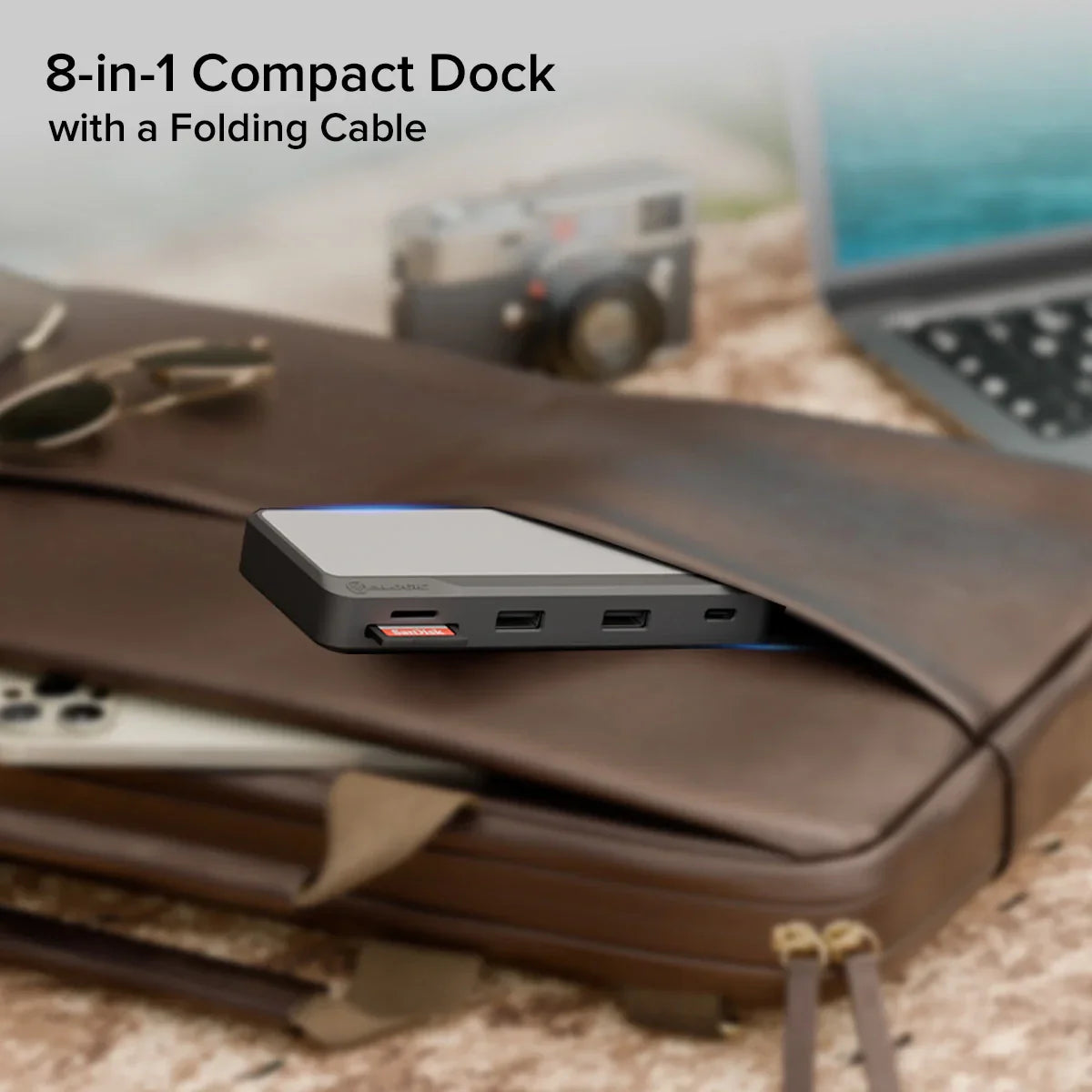

Small and Robust

With an elegant mix of Aluminium and impact resistant ABS, TOUR doesn't just look great on the desk, this compact dock has the strength to travel in a crowded laptop bag and emerge without a scratch.

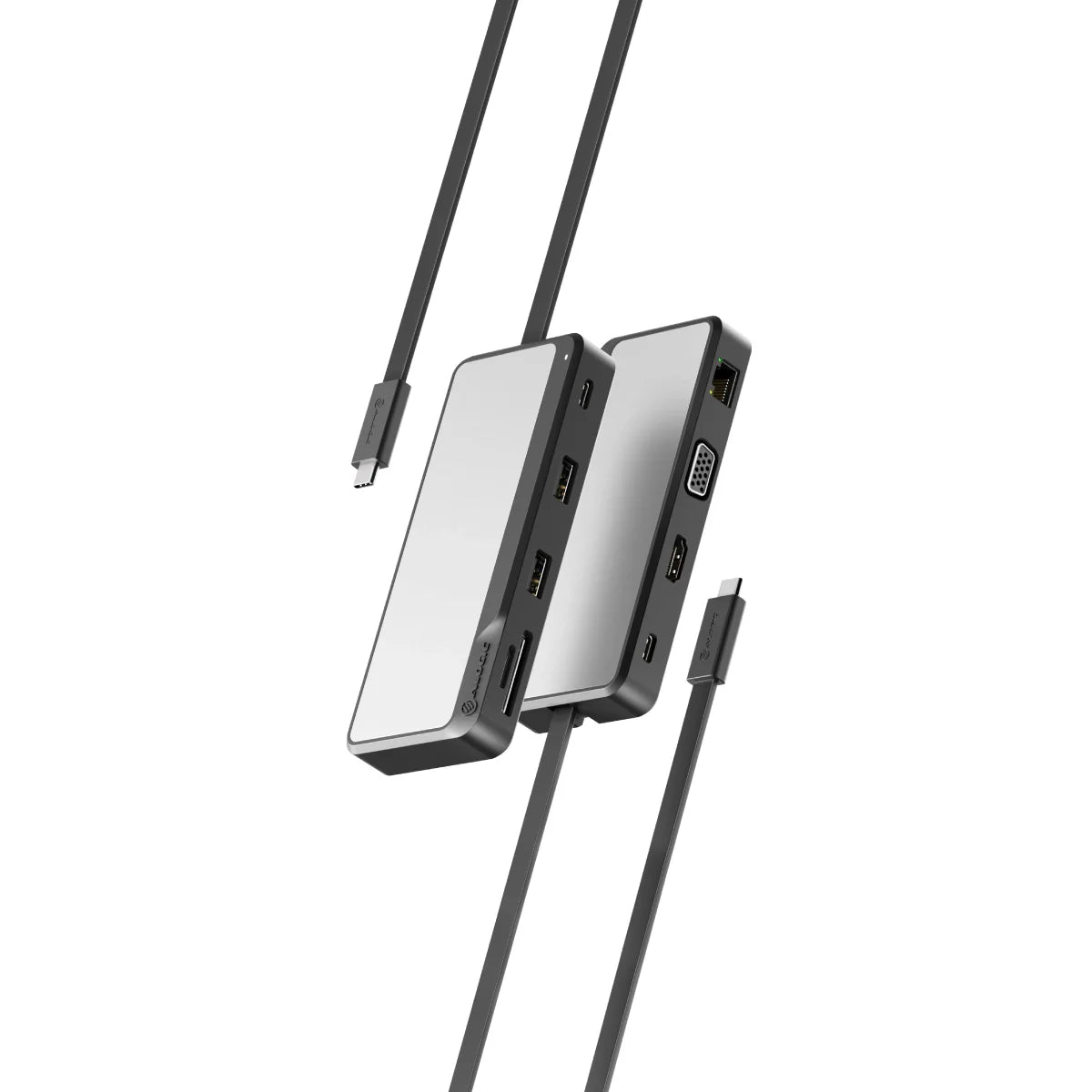

Compact & Innovative Design

This dock's compact design is perfect when space is at a premium and makes it a logical choice for mobile users Ð road warriors, educators, students and professionals who work between the office and home.
